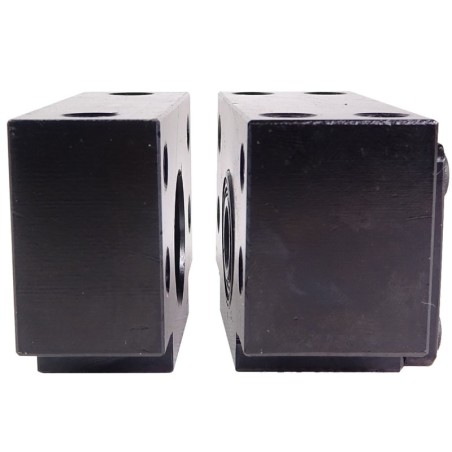

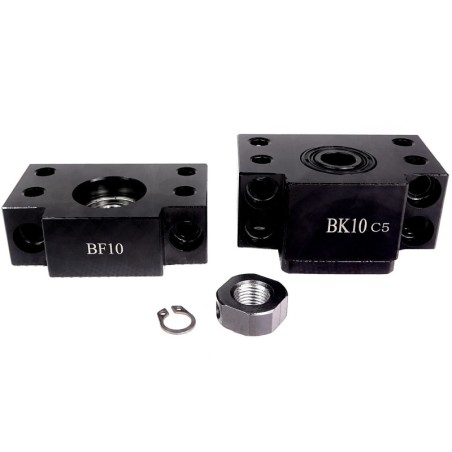

BK10 + BF10 ball screw bearing block - A set of two BK10 bearing blocks mounted on the drive side of the screw and BF10 mounted on the thread supporting side.

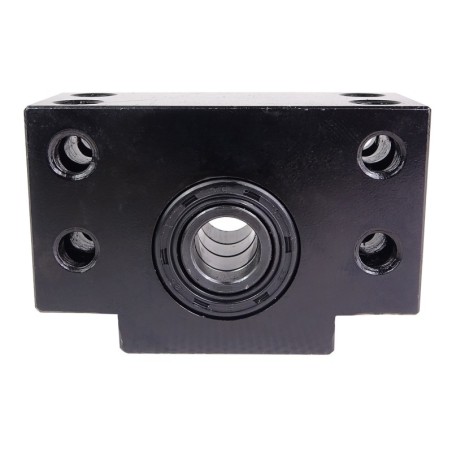

The BK10 bearing block is equipped with two angular contact bearings with an inner diameter of 10mm. This component is mounted on the drive end. Bearings transfer thrust loads in both directions and the rings protect the bearings against dirt. The block can be fastened vertically and horizontally.

Designed for bearing ball screws with diameters from 12mm to 15mm and any pitch.

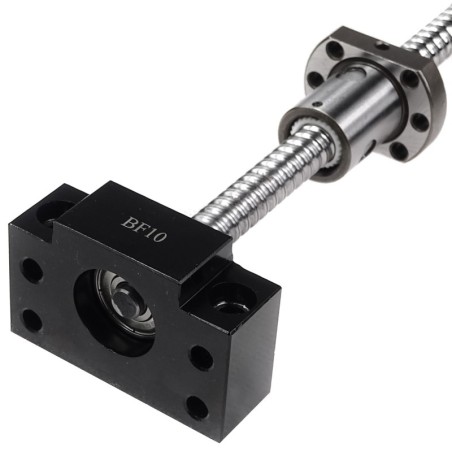

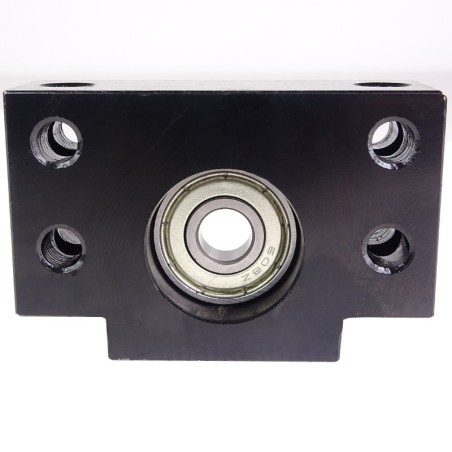

The BF10 bearing block is equipped with a 608Z bearing with an inner diameter of 8mm. This component is mounted on the thread bearing side. The bearings carry radial loads.

Suitable for ball screws with diameters from 12mm to 15mm and any pitch.

BOBO products are not compatible with KGT products.

Technical Specification:

Bearing block BK10

• Accuracy class C5

Dimensions:

• Depth: 31mm
• Width: 61mm
• Height: 40mm
• Collar width: 34mm

Mounting holes:

• Small thread holes: 6mm
• Large thread holes: 7mm
• Small holes spacing - height: 46mm
• Spacing of small holes - width: 15mm
