  • Designed for trapezoidal nuts
  • Eliminates shocks to the lead screw
  • Aluminum construction
Out-of-Stock
zł25.01
Tax included

Description

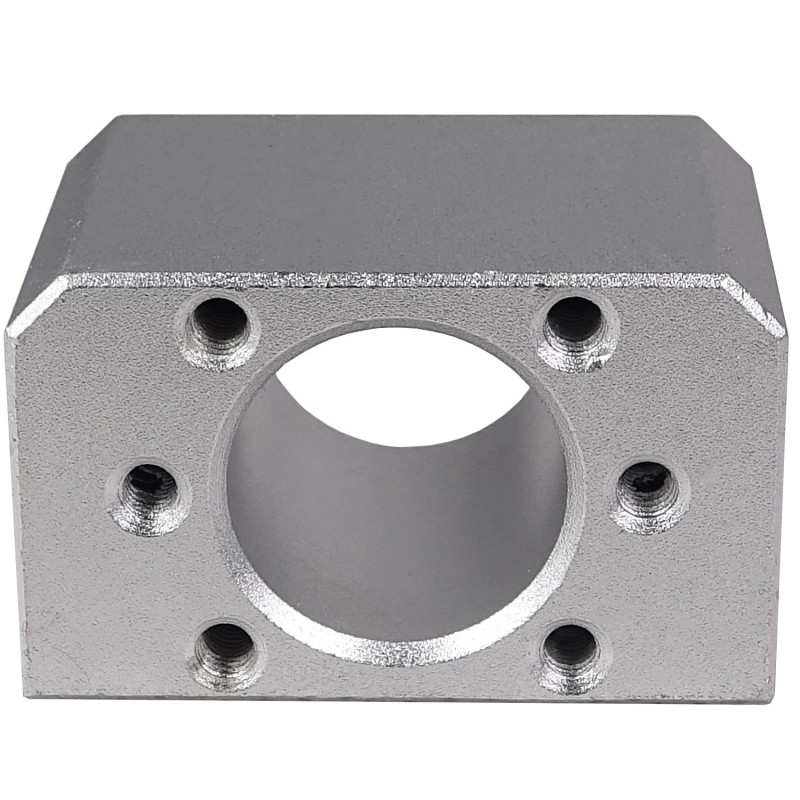

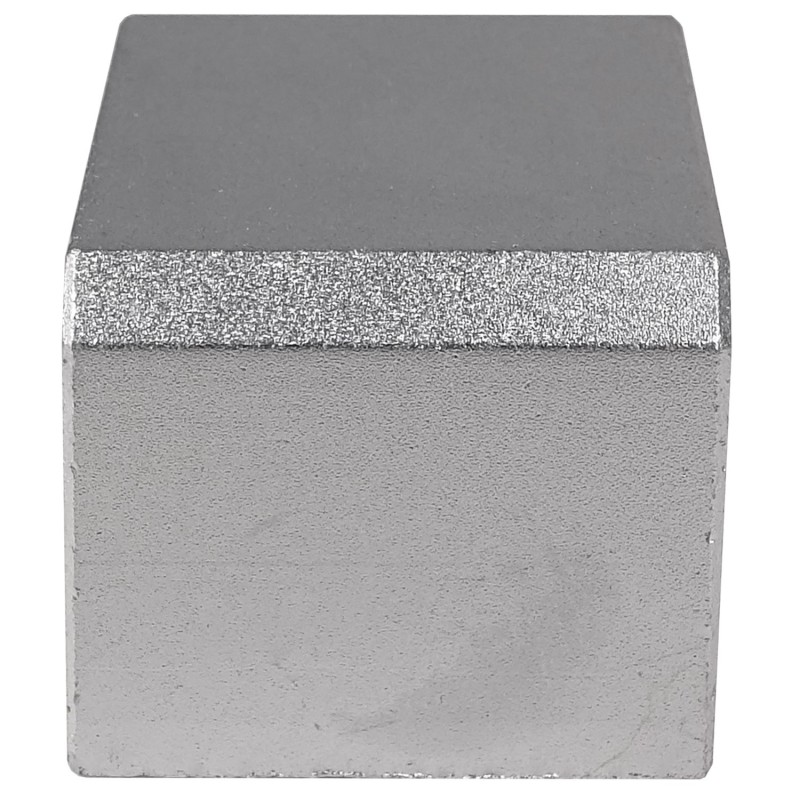

Hole Ball Screw Nut Housing Bracket for SFU1204

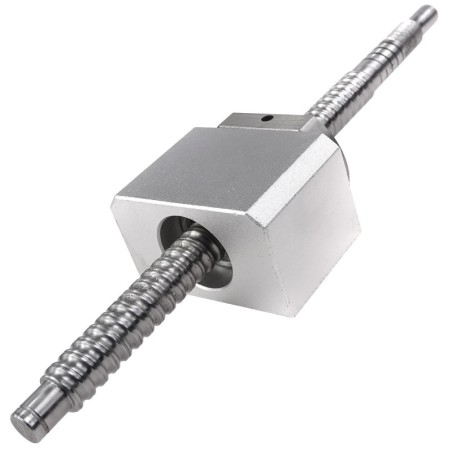

Used in drives of mechanisms carried out on trapezoidal screws, typical must have for small CNC machines projects.

Technical specification:

  • Material: Aluminum
  • Width: 35mm
  • Height: 30mm
  • Length: 28mm
  • Diameter of the flange for the screw: 22mm + -0.1mm
  • Diameter of the groove for a trapezoidal screw: 10.3mm + -0.1mm

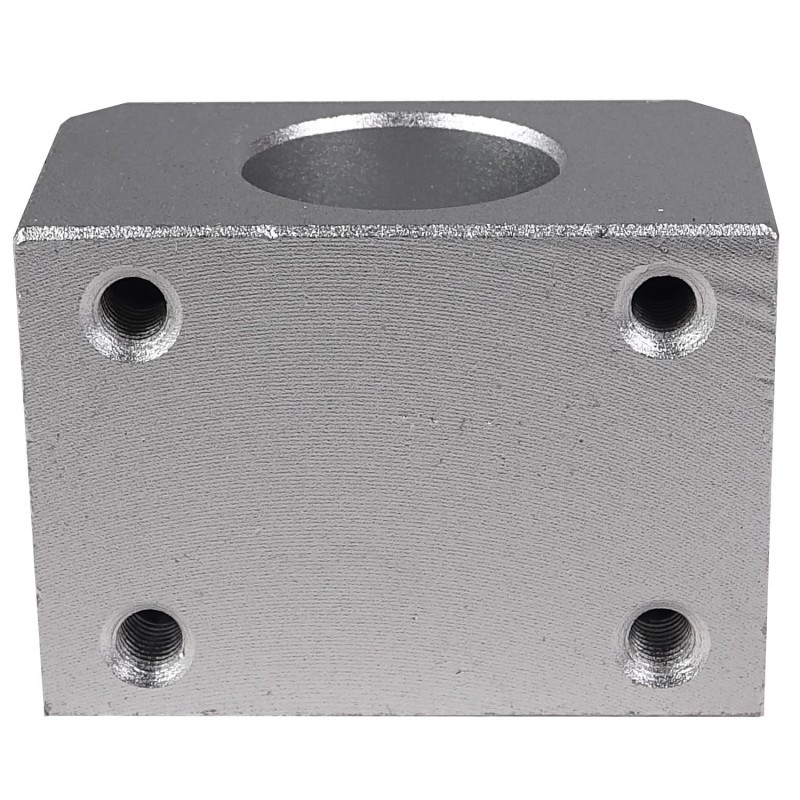

  • Block mounting holes: 4x M4
  • Holes fixing the flange of leadscrew nut: 2x M3
  • Compatible with leadscrew nuts: TR8x2 - TR8x8
  • Color: Black

Product Details

Inner diameter / shaft diameter
22 mm
Colour
Silver
Material
Aluminium
Width
50 mm
Country of origin
China
CNC compatible
Yes
5904209400874
5904209400874
