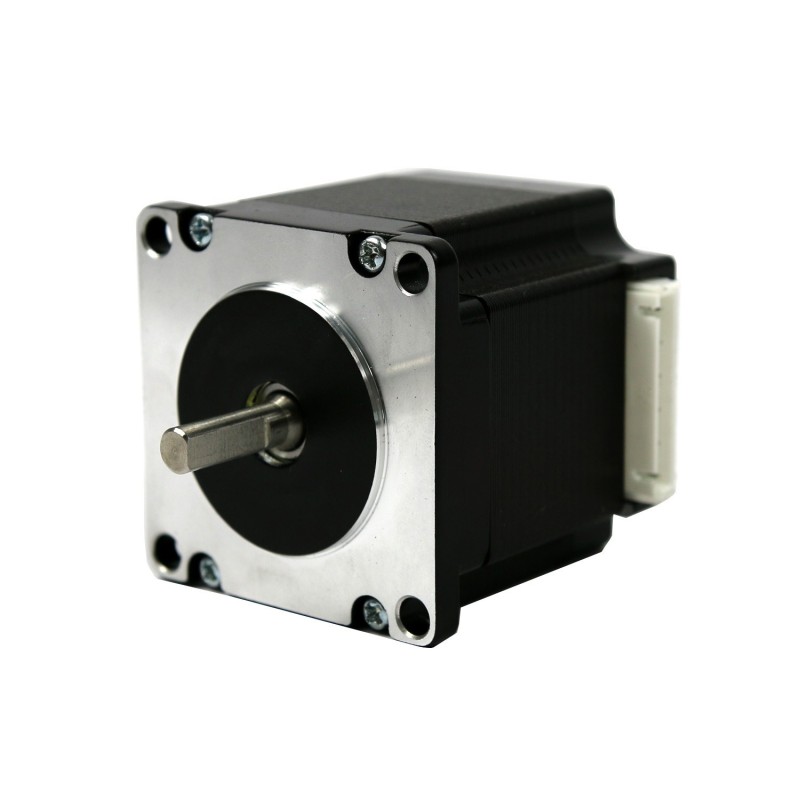

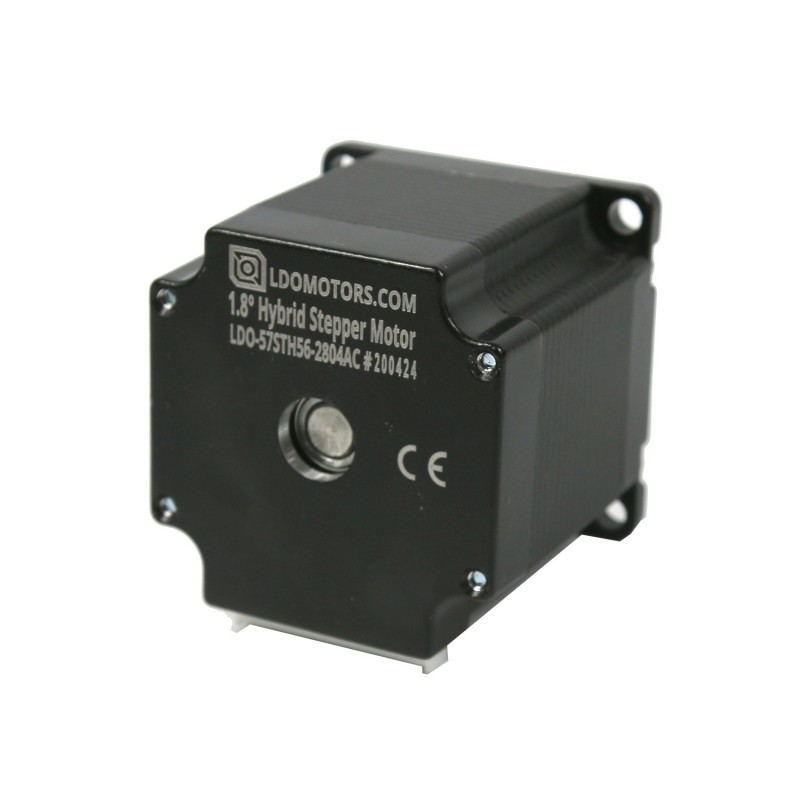

Stepper motor LDO-57STH56-2804AC
Stepper motor LDO-57STH56-2804AC
  • -20%
Stepper motor LDO-57STH56-2804AC
Stepper motor LDO-57STH56-2804AC
Stepper motor LDO-57STH56-2804AC
Stepper motor LDO-57STH56-2804AC

Stepper motor LDO-57STH56-2804AC

0 Reviews
  • High holding moment
  • Adapted to work in high temperatures
  • For the construction of large, closed 3D printers or CNC machines

Stepper motor LDO-57STH56-2804AC

Offers a high holding torque and is adapted to work in high temperatures, making it ideal for building large, closed 3D printers or CNC machines.

Technical specification:

  • Type: Nema 23
  • Step angle: 1.8 °
  • Rated voltage: 3.0 VDC
  • Steps per revolution: 200
  • Current per phase: 2.8A / phase
  • Holding torque: 12.6 Kg/cm
  • Temperature range: up to 180°C
  • Shaft: 20mm type D
  • Weight: 0,7 kg
  • Contains: motor with cable
  • Model: LDO-57STH56-2804AC
  • Cable included
5901414655440 5901414655440
In stock
zł79.20
Tax included Shipping excluded * Shipment within 24h
Our previous price : zł99.00 -20%
Time left

Stepper motor LDO-57STH56-2804AC

Offers a high holding torque and is adapted to work in high temperatures, making it ideal for building large, closed 3D printers or CNC machines.

Technical specification:

  • Type: Nema 23
  • Step angle: 1.8 °
  • Rated voltage: 3.0 VDC
  • Steps per revolution: 200
  • Current per phase: 2.8A / phase
  • Holding torque: 12.6 Kg/cm
  • Temperature range: up to 180°C
  • Shaft: 20mm type D
  • Weight: 0,7 kg
  • Contains: motor with cable
  • Model: LDO-57STH56-2804AC
  • Cable included

Motor type
NEMA23
Holding torque
from 9 to 13 Kg/cm
Inner diameter / shaft diameter
5,5 mm
Weight
0,70 kg
Rated voltage
3,0 VDC
Body length
56 mm
Holding moment
1,26 Nm
5901414655440 5901414655440
Product Description

Stepper motor LDO-57STH56-2804AC

Offers a high holding torque and is adapted to work in high temperatures, making it ideal for building large, closed 3D printers or CNC machines.

Technical specification:

  • Type: Nema 23
  • Step angle: 1.8 °
  • Rated voltage: 3.0 VDC
  • Steps per revolution: 200
  • Current per phase: 2.8A / phase
  • Holding torque: 12.6 Kg/cm
  • Temperature range: up to 180°C
  • Shaft: 20mm type D
  • Weight: 0,7 kg
  • Contains: motor with cable
  • Model: LDO-57STH56-2804AC
  • Cable included
Product Details
Motor type
NEMA23
Holding torque
from 9 to 13 Kg/cm
Inner diameter / shaft diameter
5,5 mm
Weight
0,70 kg
Rated voltage
3,0 VDC
Body length
56 mm
Holding moment
1,26 Nm
5901414655440 5901414655440
