Stepper motor LDO-42STH25-1404MAC
Stepper motor LDO-42STH25-1404MAC
Stepper motor LDO-42STH25-1404MAC
Stepper motor LDO-42STH25-1404MAC
Stepper motor LDO-42STH25-1404MAC
Stepper motor LDO-42STH25-1404MAC
Stepper motor LDO-42STH25-1404MAC
Stepper motor LDO-42STH25-1404MAC

Stepper motor LDO-42STH25-1404MAC

Read user reviews
  • Small size
  • Light weight
  • Perfect for small machines
5901414655426 5901414655426

Description

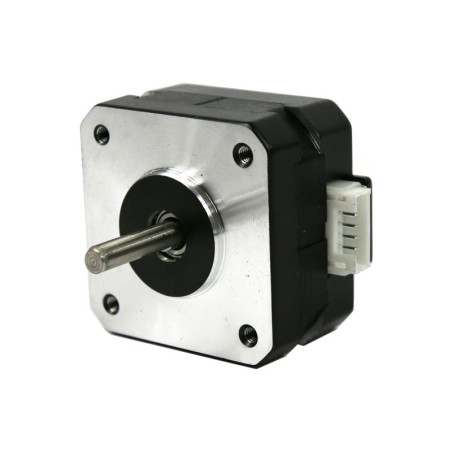

Stepper motor LDO-42STH25-1404MAC

Thanks to its small size and weight, it is ideal for a direct extruder motor or constructing small delta machines where the only limitation is space. Despite slim design, this motor has a holding force of 18N/cm.

Technical specification:

  • Type: Nema 17
  • Step angle: 0.9 °
  • Steps per revolution: 400
  • Current per phase: 1.4A
  • Holding torque: 18 N / cm
  • Shaft: 17 mm D-type
  • Model LDO-42STH25-1404MAC
  • Without cable

Product Details

Motor type
NEMA17
Holding torque
max 1,8 Kg /cm
to 2,99 Kg/cm
Inner diameter / shaft diameter
5 mm
Weight
0,15 kg
Supported Printers
Prusa MK3
Prusa MK3s
VORON2.1
VORON 2.4
Rated voltage
1,4 A
Body length
26 mm
Holding moment
0,18 Nm
Country of origin
China
5901414655426 5901414655426
