Stepper motor LDO-42STH48-2004AC

  • 1.8 degree step
  • Wide range of applications
  • Holding torque 0.59N / cm
Variants
Stepper motor LDO-42STH48-2004AC | HOBBY-STORE
Stepper motor LDO-42STH48-2004AH | HOBBY-STORE
Stepper motor LDO-42STH48-2504AH | HOBBY-STORE
Stepper motor LDO-42STH48-2504AC | HOBBY-STORE
Stepper motor LDO-42STH48-2804AC | HOBBY-STORE
Stepper motor LDO-42STH48-2804AH | HOBBY-STORE
Stepper motor LDO-42STH48-2804AH(S55) | HOBBY-STORE
Out-of-Stock
zł89.00
Tax included

Description

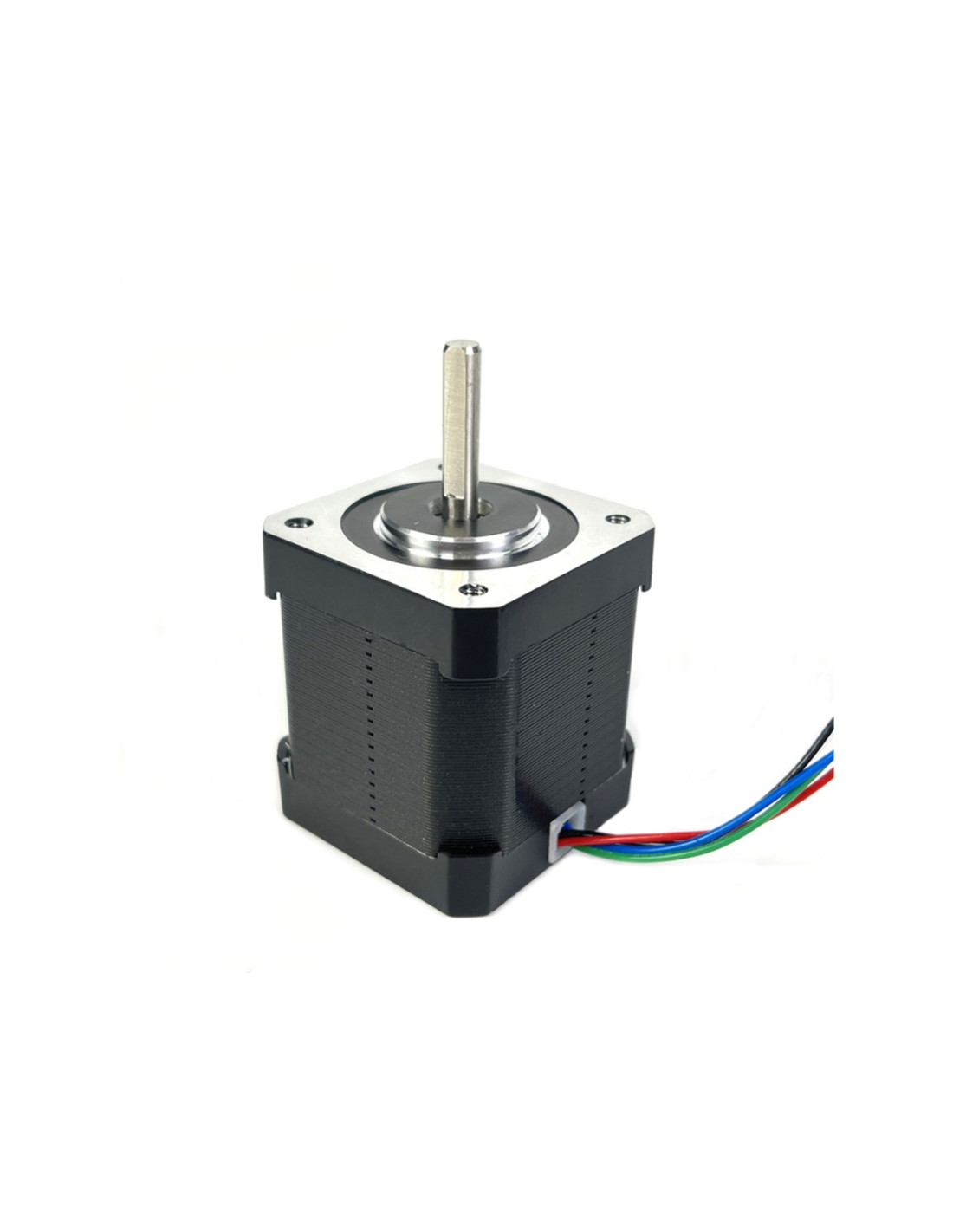

Stepper Motor LDO-42STH48-2004AC

Standard version of a NEMA 17 stepper motor with insulation class B (up to 130 °C). Ideal for 3D printers, CNC machines, and DIY projects.

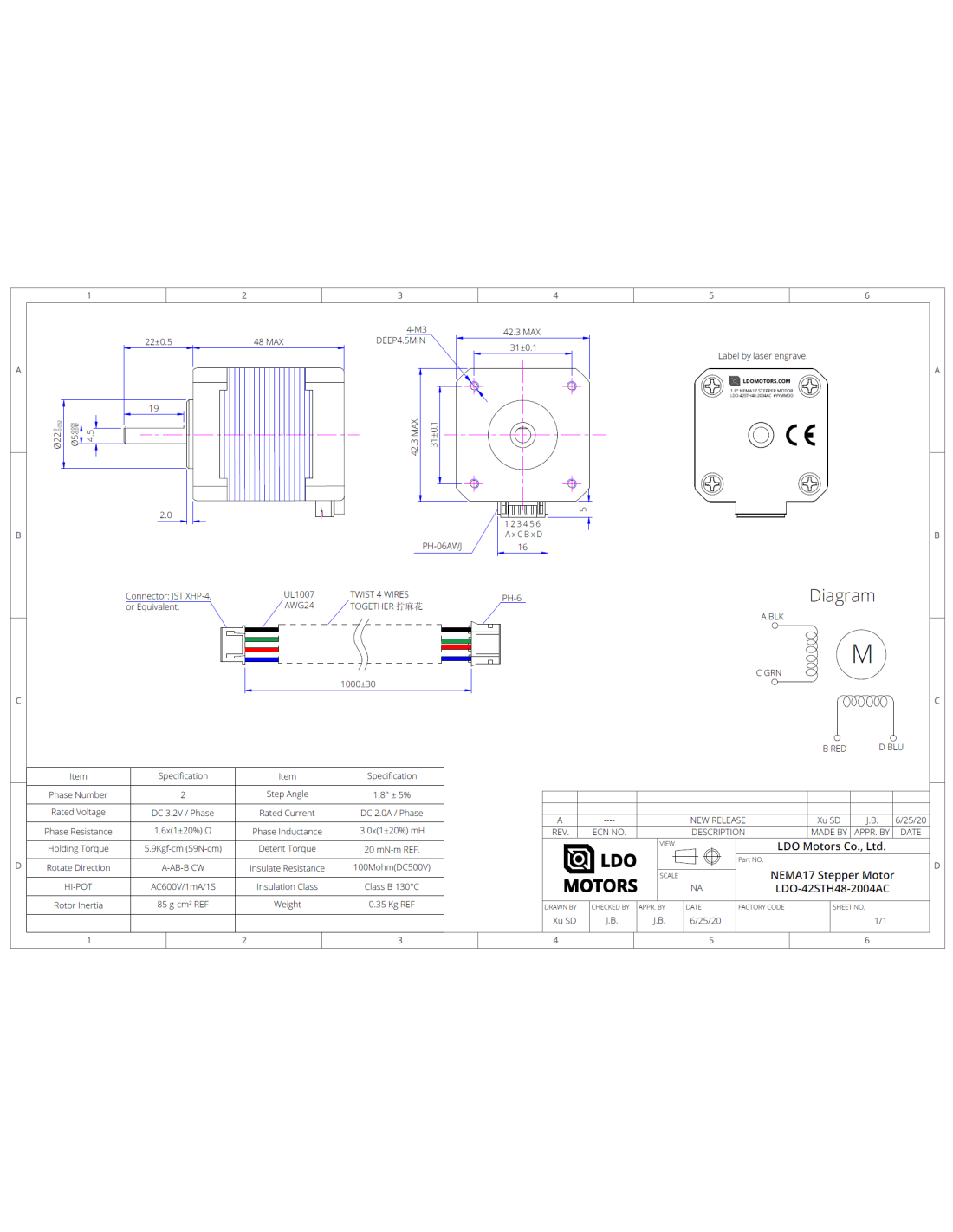

Technical specifications:

  • Type: NEMA 17

  • Model: LDO-42STH48-2004AC

  • Step angle: 1.8° ±5% (200 steps per revolution)

  • Number of phases: 2

  • Rated voltage: 3.2 VDC

  • Current per phase: 2.0 A

  • Winding resistance (20 °C): 1.6 Ω ±10%

  • Inductance: 3.0 mH ±20%

  • Holding torque: ≥ 5.9 kg·cm (≈ 0.578 Nm or 59 N·cm)

  • Weight: ~350 g

  • Maximum operating temperature: up to 130 °C (Class B)

  • Shaft: 5 mm diameter, 24 mm length, D-type

  • Motor body length: 48 mm (without shaft)

Product Details

Motor type
200 steps
NEMA17
Holding torque
from 5 to 8,99 Kg/cm
Inner diameter / shaft diameter
5 mm
Weight
0,39 kg
Supported Printers
HevORT
HyperCube Evolution
VORON 2.4
Voron Trident
Body length
48 mm
Holding moment
0,59 Nm
Coil energy consumption
2.0 A
Country of origin
China
5901414655457
5901414655457
