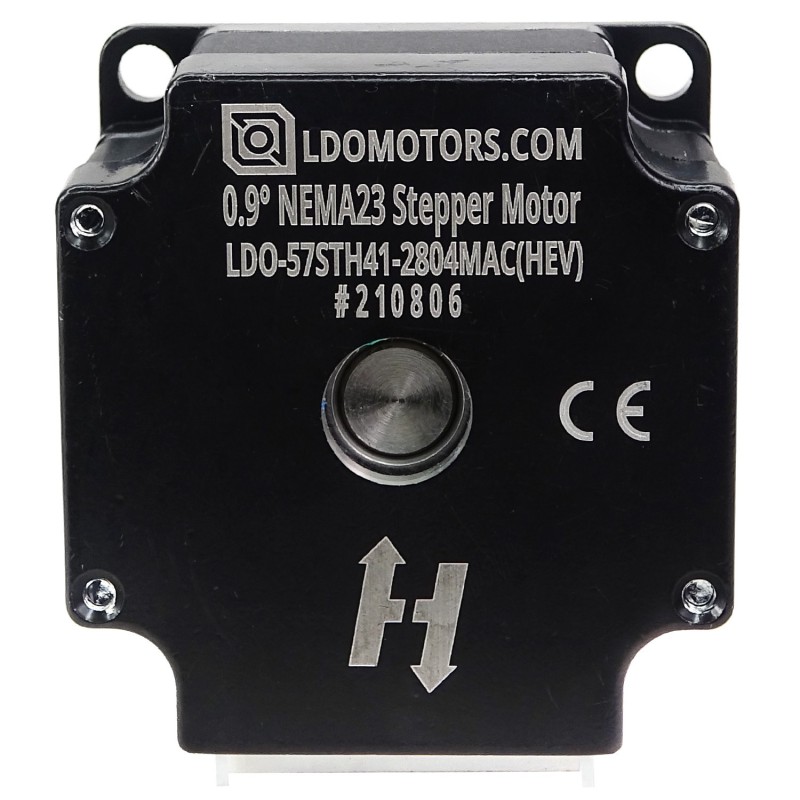

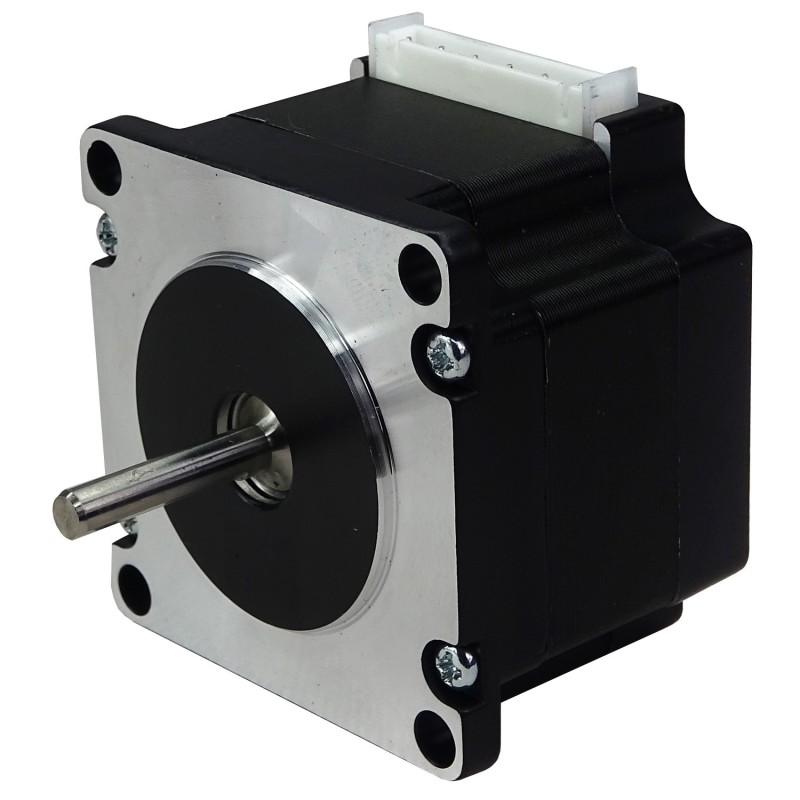

Stepper motor LDO-57STH41-2804MAC

Step motor type: NEMA 23
Step angle: 0.9°
Holding torque: 6 kg/cm (0,6Nm)

Last items in stock

zł104.99

Tax included

Description

Stepper motor LDO-57STH41-2804MAC

NEMA 23 stepper motors are popular motors dedicated to the HevORT 3D printer, however, they can be used in the construction of other 3D printers, plotters, milling machines and different CNC machines, as well as in DIY projects.

Technical specification:

Type: Nema 23
Step angle: 0.9°
Rated voltage: 2.0 VDC
Steps per revolution: 400
Current per phase: 2.8A/phase
Holding torque: 6 kg/cm (0,6Nm)
Temperature range: -20°C do 50 °C
Weight: 0,42 kg
Contains: stepper motor with cable
Model: LDO-57STH41-2804MAC

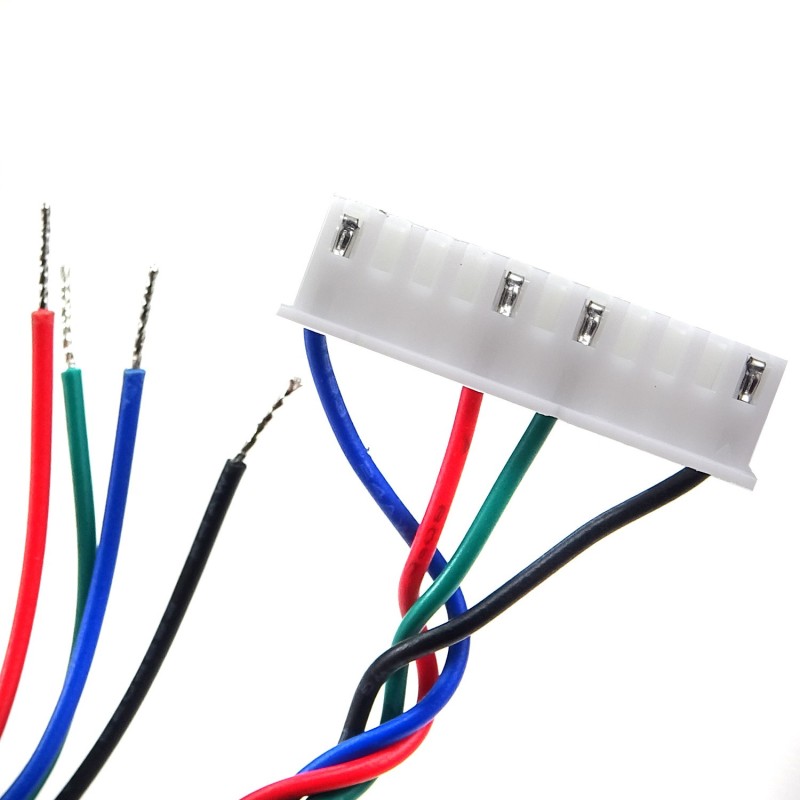

Cable included

Product Details

Motor type: 400 steps
NEMA23
Inner diameter / shaft diameter: 5 mm
Weight: 0,45 kg
Supported Printers: HevORT
Body length: 56 mm
Holding moment: 0,55 Nm
Country of origin: China
CNC compatible: Yes

Reference 5901414659707

In stock 1 Item

EAN13 5901414659707
