ALTRAX HevORT 3D printer profiles set - 315x315 mm in Standard version

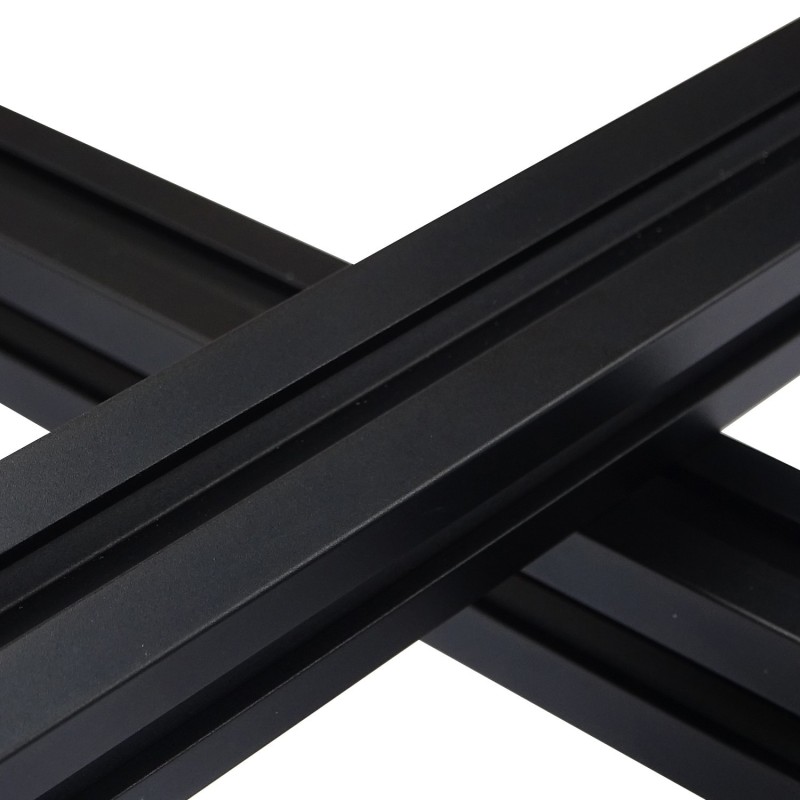

Set of black anodized profiles made of AW 6063-T66 aluminum alloy. Thanks to it, you can build a printer with a working area of 315x315x340 mm. The frame structure provides space for the installation of electronics.
Set includes only profiles cut to size, without any fasteners.
The AW 6063-T66 alloy is dedicated to construction profiles of the highest strength, ensures good durability and very good corrosion resistance. This type of alloy is mainly used in structures that require good bending strength - ideal for building 3D printers and CNC machines.
It is optional to use angular joints to ensure right angles at the point of joining profiles, and thus greater stability and rigidity of the entire structure.
Technical specification:
- Profile alloy type: AW 6063-T66
- Tensile strength of aluminum: 230 MPa88
- Hardness: ≥ 9.8 HW
The composition of the set:
ALTRAX 2020 T-SLOT profiles
- 1 x 2020 T-Slot 431mm long aluminum profiles
- 2 x 2020 T-Slot aluminum profiles, 320mm
- 2 x 2020 T-Slot aluminum profiles 260mm
ALTRAX 3030 T-SLOT profiles
- 5 x 3030 T-Slot aluminum profiles, 420mm
- 3 x 3030 T-Slot aluminum profiles, 510mm
- 4 x 3030 T-Slot aluminum profiles, 140mm
- 8 x 3030 T-Slot aluminum profiles, 410mm
- 6 x 3030 T-Slot aluminum profiles, 880mm
