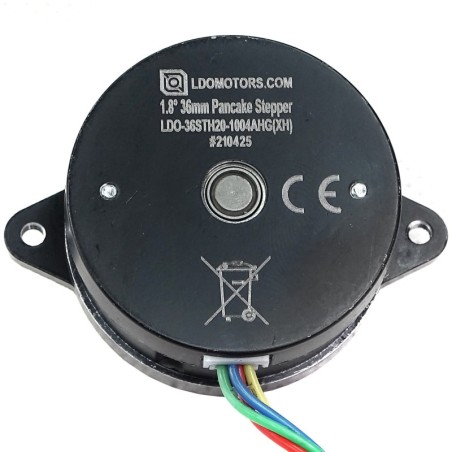

Stepper motor LDO-36STH20-1004AHG (XH)

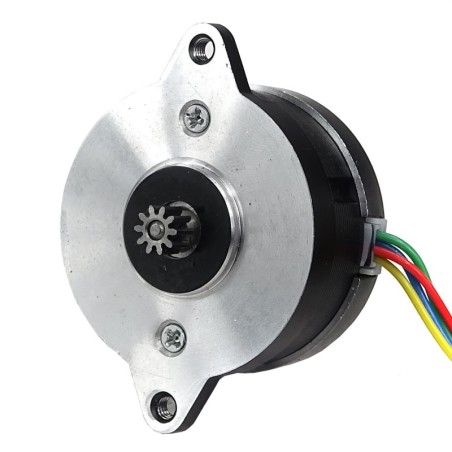

1.8 degree stepper motor with a holding torque of 5mN-m. This model has a toothed mandrel which makes it an ideal solution for extruders (e.g. Galileo, Orbiter) 3D printers (e.g. Voron 0 / 1.8 / 2.4), of 3D printers, CNC machines and other DIY projects. The motor has an insulation class of H 180 °C

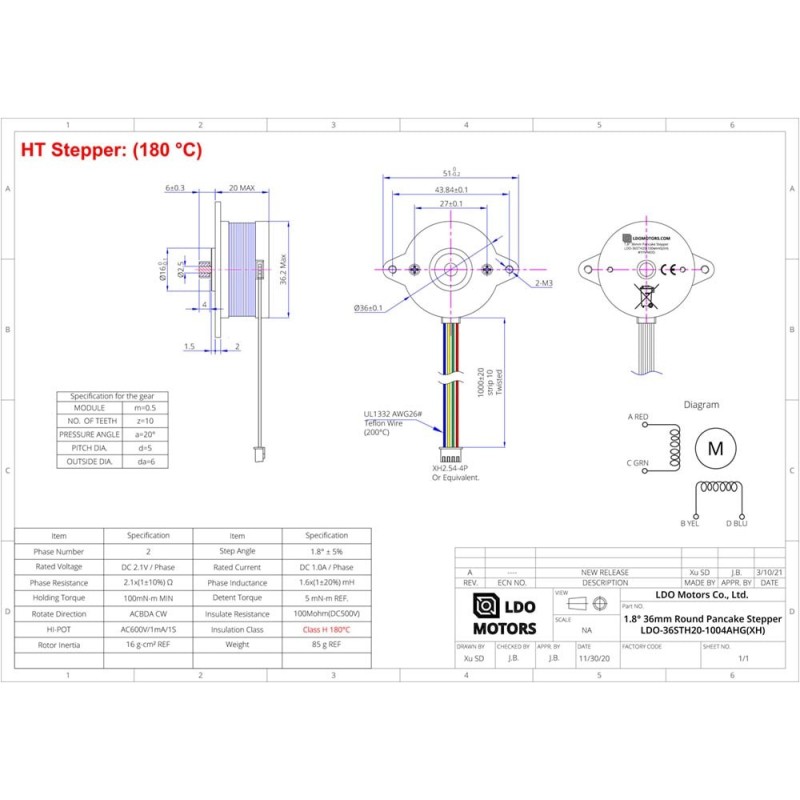

Technical specification:

  • Number of phases: 2
  • Crotch angle: 1.8 ° ± 5%
  • Resistance: 2.1 ± 15% Ω
  • Rated current: DC 1.0 A / Faze
  • Holding torque: 5 mN-m
  • Bolt lenght: 4mm
  • Weight: 0.85 Kg
  • Insulation class: Class H 180°C
  • Cable included

Product Details

Inner diameter / shaft diameter
2,5 mm
Weight
0,85 kg
Supported Printers
HevORT
VORON 0
VORON 2.4
Wires number
4
Body length
20 mm
Holding moment
5 mN
Country of origin
China
Compatible extruders
Orbiter v1.5
