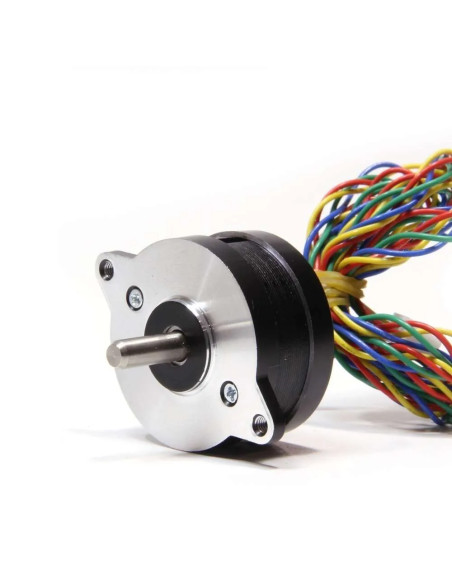

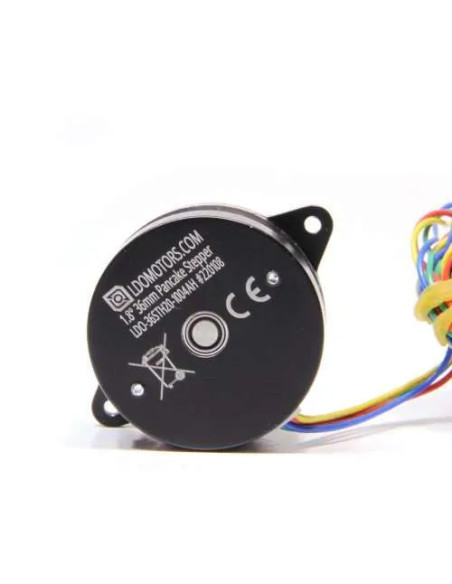

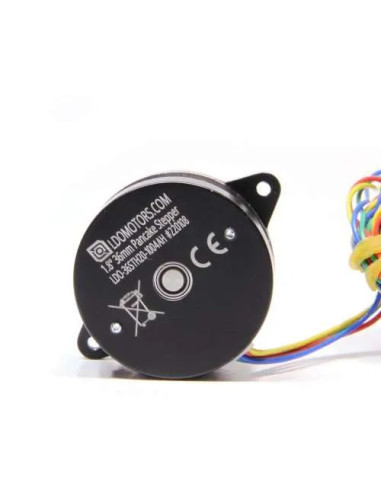

Stepper Motor LDO-36STH20-1004AH (S15)
Compact 36 mm “pancake” stepper motor with a short 15 mm shaft – designed for use in worm/screw extruders such as Kyro, Double Folded, and Ascender. High-temperature variant with Class H insulation (up to 180 °C), built for thermally demanding environments.

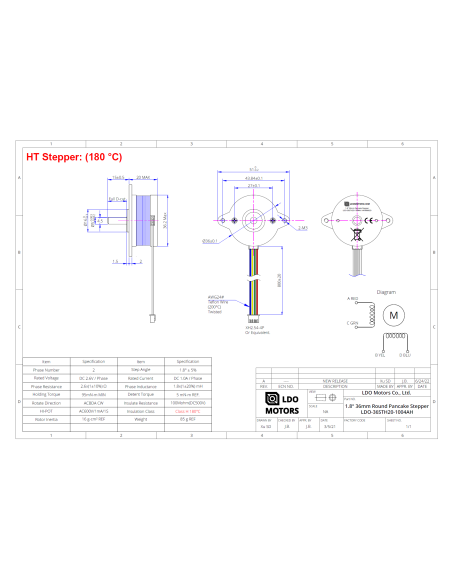

Technical specifications:
-
Type: 36mm Round Pancake NEMA
-
Model: LDO-36STH20-1004AH (S15)
-
Step angle: 1.8° ±5% (200 steps per revolution)
-
Number of phases: 2
-
Rated voltage: 2.6 VDC
-
Current per phase: 1.0 A
-
Winding resistance (20 °C): 2.6 Ω ±10%
-
Inductance: 1.8 mH ±20%
-
Holding torque: ≥ 9.5 N·cm (≈ 0.095 Nm)
-
Weight: ~85 g
-
Maximum operating temperature: up to 180 °C (Class H)
-
Shaft: 5 mm diameter, 15 mm length, full D-cut
-
Motor body length: 20 mm (without shaft)
