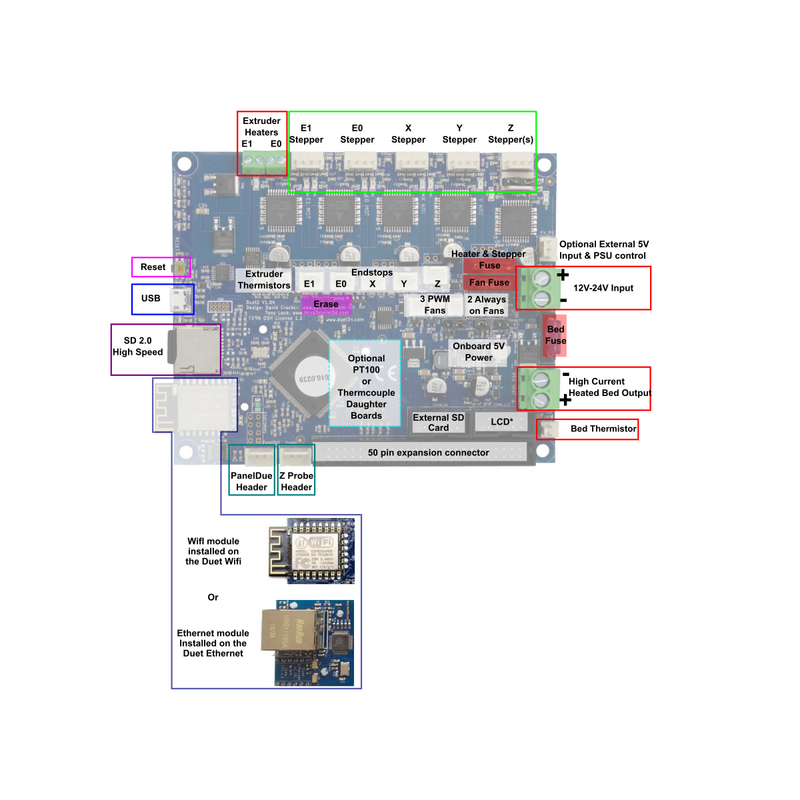

Controller board Duet 2 Wifi v1.04c

Controller board Duet 2 Wifi v1.04c motherboard is an advanced 32-bit motherboard that can be used to control 3D printers and other CNC machines. It is equipped with a WiFi wireless communication module. Features (except Ethernet connectivity) are the same as Ethernet Duet 2 model.

Technical specification:

• Powerful 32 Bit Processor

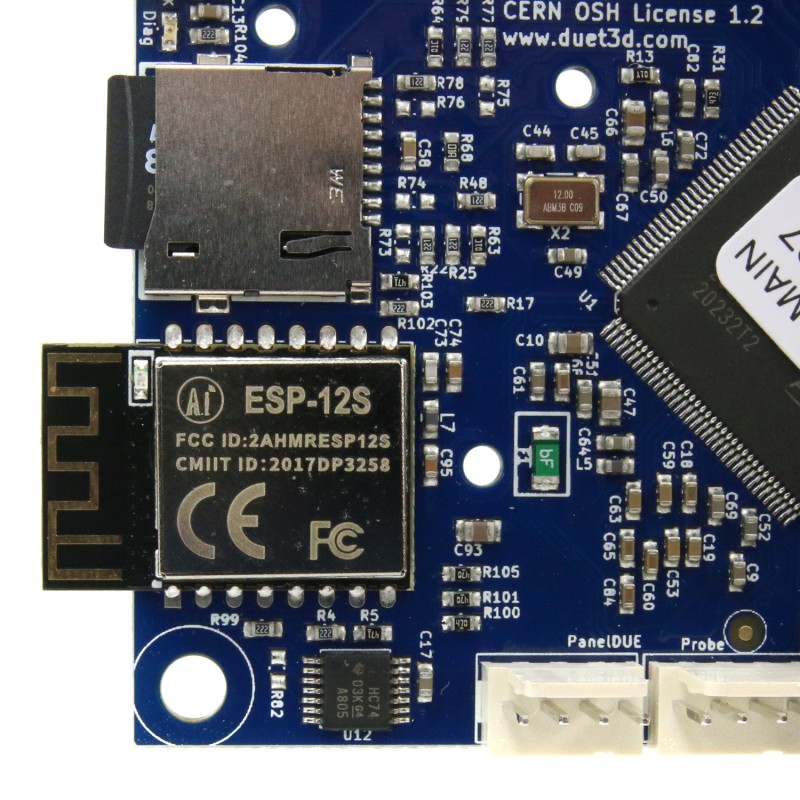

• Dedicated Wifi module with either :

1. a compact built-in antenna
2. a external antenna for extending Wifi range or allowing the Duet 2 Wifi to be mounted in a shielding enclosure with the antenna outside.

• Super quiet TMC2660 stepper drivers, up to 256 microstepping.
• High speed uSD card and support for a second external SD card if required.
• Dual extruders on the main board, up to 5 more extruders on the expansion board.
• High Power rating: Each stepper driver is capable of 2.8A motor current, currently limited in software to 2.4A. The bed heater channel is specifically designed for high current (18A).
• Connect via PC, tablet or smartphone on the same network to the on board web interface.
• Set up your printer and update the firmware through the web interface.
• All common 3D printer geometries are supported
• Expandable up to 7 extruders with Firmware support for mixing nozzles and remapping axes to use high power external drivers.
• Support for the PanelDue: a full colour graphic touch screen
• Support for DC42’s IR Z probe and the Duet3D Smart Effector for delta printers.
• Provided with Molex compatible plugs and crimps as well as ferrules for power and heater terminals.

The Duet 2 Wifi can have Thermistors connected directly, alternatively we have two different temperature sensing daughterboards available:

• PT100 Temperature expansion module
• Thermocouple temperature expansion module

Documentation and useful links:

• Full feature descriptions are available in this documentation
• Link to Firmware - RRF3 version

• We have the status of Duet3D Genuine Reseller
