ALTRAX 3D printer frame - VORON Switchwire

ALTRAX 3D printer frame - VORON Switchwire

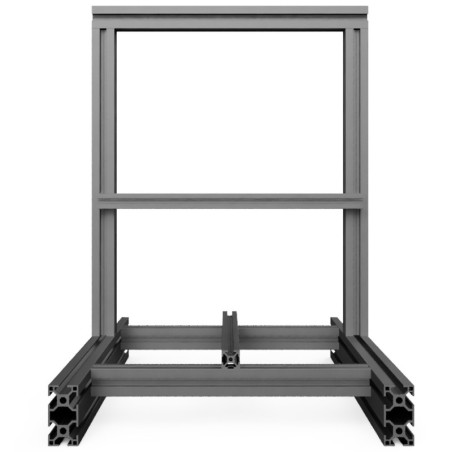

Complete set of black, anodized T-slot profiles for self-assembly of the VORON Switchwire printer frame.

AW 6063 T66 aluminum, from which the profiles were made, provides good durability and very good corrosion resistance. This type of alloy is mainly used in structures that require good strength with a good surface finish and good anodizing response, such as profiles for windows, doors, ceilings and furnitures.

Technical specification:

• Profile alloy type: AW 6063 T66
• Tensile strength of aluminum: 160 MPa
• Hardness: ≥ 8.5 HW

Set list:

• 3060 - T-slot
• 520mm - 2 pcs.

• 3030 - T-slot
• 400mm threaded on both sides - 2 pcs
• 360mm drilled on both sides - 1 pc
• 300mm threaded on both sides - 2 pcs

• 2020 - T-slot
• 340mm threaded on both sides - 1 pc.
• 340mm - 1 pc

Screws:

• Socket Head Button Screws M6x8mm - black x2
• Socket Head Button Screws M8x16mm - black x8
• M6 Slide in t nuts for 8mm profile groove x2

Links

• List of components for the VORON Switchwire
• Assemble manual
