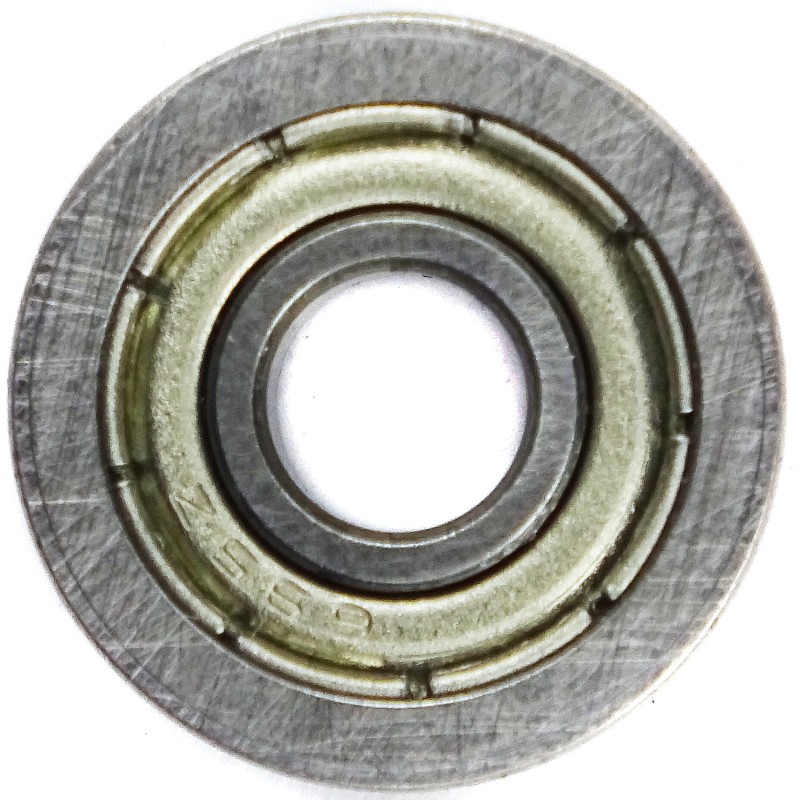

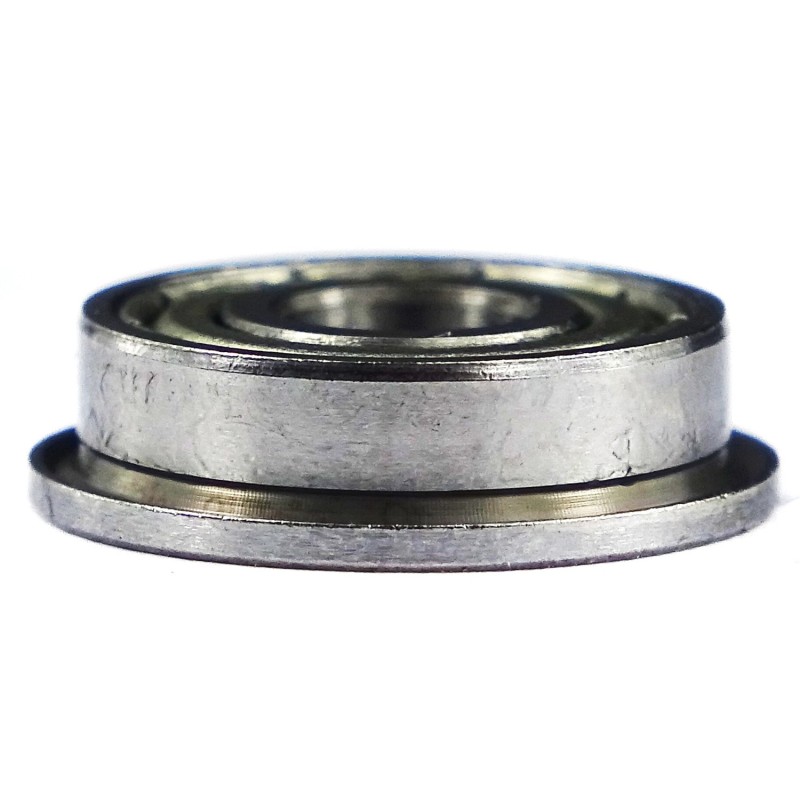

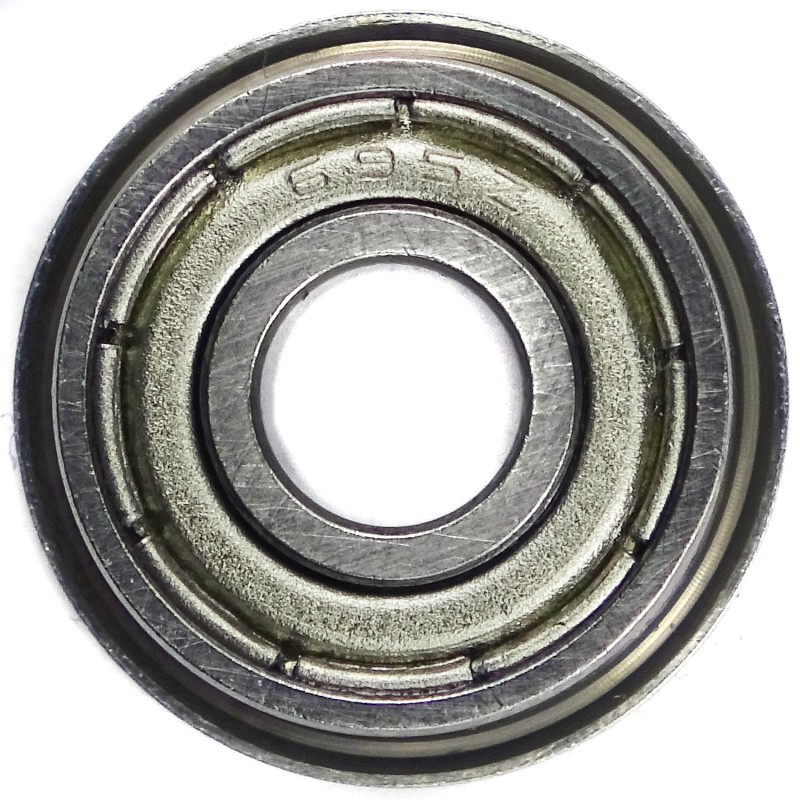

Flanged bearing F695ZZ 5x15x4 mm
The F695ZZ flange bearing is a flanged ball bearing. Used in individual projects related to 3D printing and more. The bearing may be axially fixed, e.g. in holes. The flange is an extension of the bearing outer ring, designed to facilitate mounting and positioning of the bearing.
Technical specification:
- inner diameter / hole - 5 mm
- outer diameter with flange - 15 mm
- flange diameter - 2 mm
- diameter without flange - 13 mm
- width - 4 mm
- flange thickness - 1 mm
