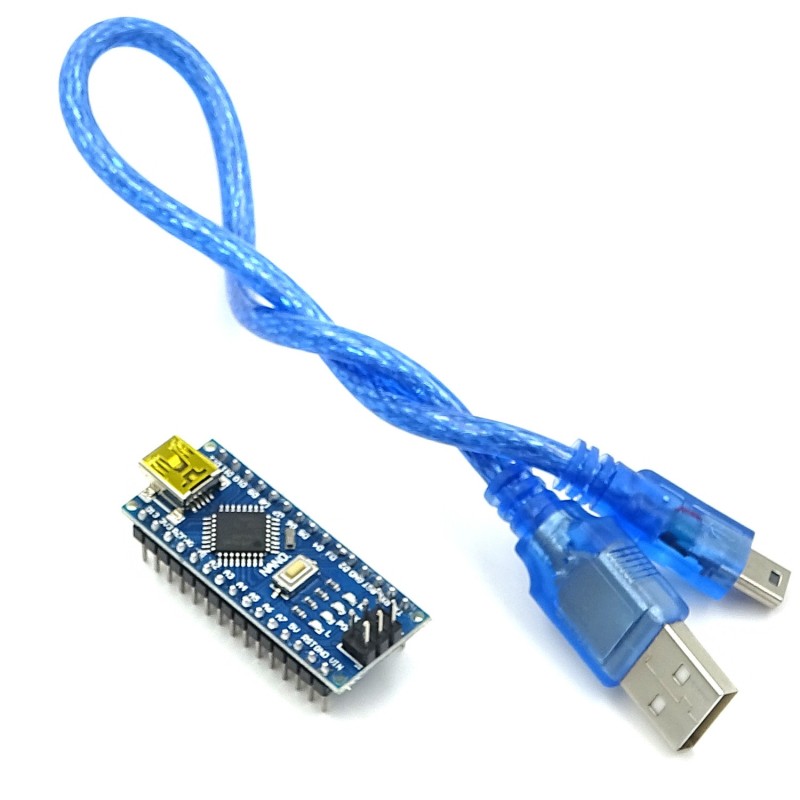

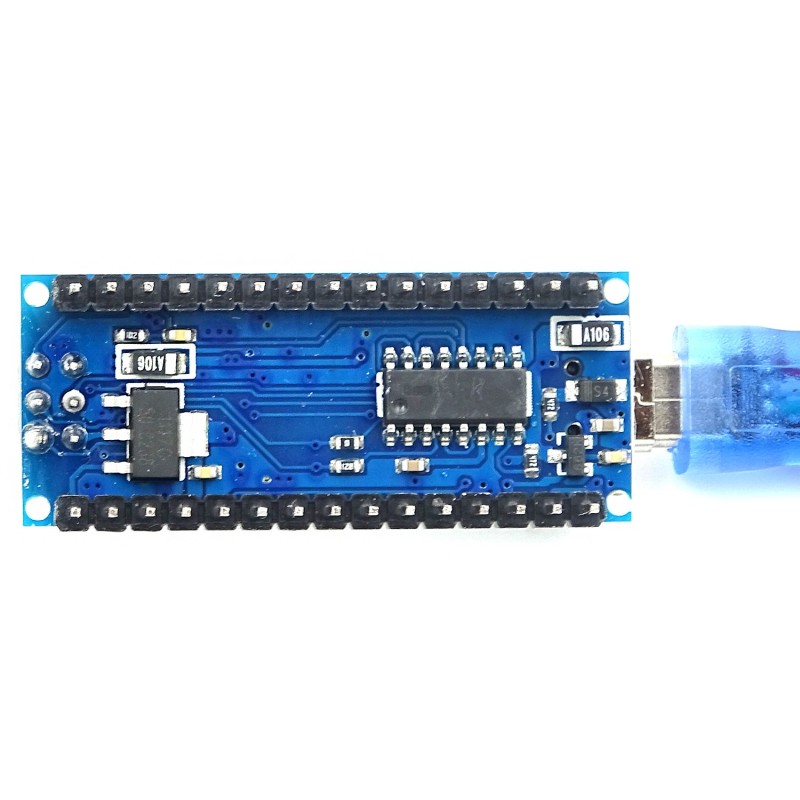

NANO V3.0 16MHz microcontroller - ATmega328PB - CH340 compatible with Arduino

NANO V3.0 16MHz microcontroller - ATmega328PB - CH340 compatible with Arduino

microcontroller is a universal mini Arduino module with ATmega328PB microcontroller and miniUSB connector.

The system is compatible with the Arduino project for use with the CNC SHIELD v4 as a control module for a 3-axis CNC machine

Arduino NANO V3.0 has a CH340 programmer for which you need an additional driver, which is below.

Technical specification:

• Microcontroller: ATmega328PB,
• 14 digital outputs, of which 6 PWM up to 8 analogue inputs with a resolution of 0-1023, i.e. 10-bit;
• 32KB Flash memory, 2048 B SRAM memory, 1024 B EEPROM memory;
• Clock frequency (crystal) 16 MHz;
• Equipped with a serial port;
• Input voltage 5-12V DC (logic) 5V,
• Includes CH340 chip (USB converter)

Download:

• Drivers for CH340 chip
• Arduino IDE
