  • Current consumption up to 2.5 A (1.5 A without external cooling).
  • Compatible with large motors (NEMA23)
  • Perfect for large 3D printers and CNC machines
zł12.90
Tax included

Description

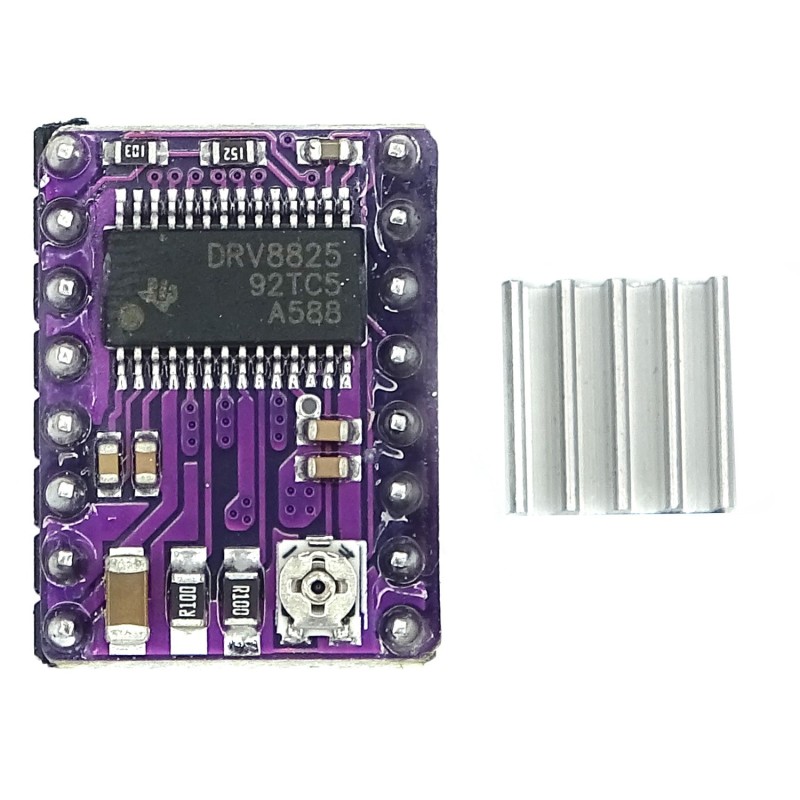

DRV8825 stepper motor driver - stepstick - stepper motor's driver based on the system DRV8825, allows you to control the motor with a current consumption of up to 1.5 A with cooling of up to 2.2 A per coil, at powering with the voltage of up to 24 V. The module with the goldpin leads and the attached radiator.

These controllers can be used to control extruders and with large NEMA 23 motors. Due to their parameters, these stepsticks are widely used in CNC machines.

Technical specification:

  • Supply voltage: 8,2 V - 45 V
  • DC per coil: 1.5 A
  • Maximum momentary current per coil: 2.5 A
  • Supply voltage of the logic part: 2.5 V - 5.25 V
  • Resolution: 1, 1/2, 1/4, 1/8, 1/16, and 1/32 of the step

Product Details

Country of origin
China
Logic control voltage
2.5V - 5.25V
CNC compatible
Yes
5904209400881
4 Items
5904209400881
