Diode Schottky BAT85 - 30 pieces
Diode Schottky BAT85 - 30 pieces
Diode Schottky BAT85 - 30 pieces
Diode Schottky BAT85 - 30 pieces

Diode Schottky BAT85 - 30 pieces

  • Maximum diode current: 200 mA
  • Diode reverse voltage: 30V
  • Working temperature: -65 ° C ~ 150 ° C
Last items in stock
zł9.90
Tax included

Description

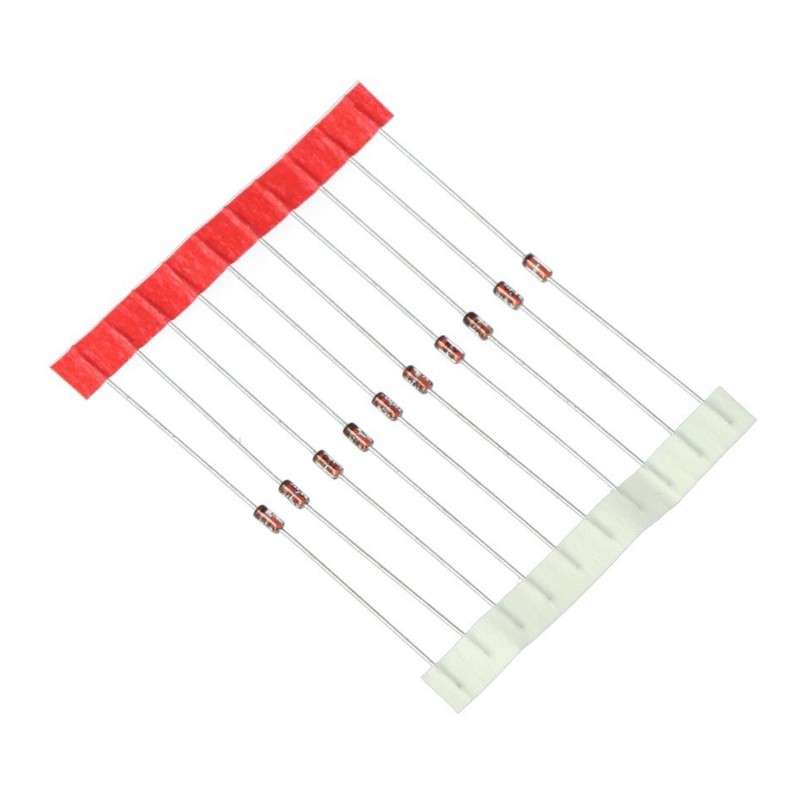

Diode Schottky BAT85 - 30 pieces

Schottky diode BAT85 is a Schottky blocking diode with axial lead-outs. These diodes have a hermetic casing with leads; are suitable for mounting with 5.08mm spacing. Diodes are customarily used for very high speed switching, clamping, interlocking and protection circuits.

Technical specification:

  • diode type: Schottky
  • current - Average Rectified: 200mA (DC)
  • speed: Small Signal =< 200mA (Io), Any Speed
  • capacitance @ Vr, F: 10pF @ 1V, 1MHz
  • mounting type: Through Hole
  • operating temperature - Junction: -65°C ~ 150°C
  • voltage - DC Reverse (Vr) (Max): 30 V
  • reverse recovery Time (trr): 5 ns
  • voltage - forward (Vf) (Max) @ If: 800 mV @ 100 mA
  • current - reverse Leakage @ Vr: 2 µA @ 25 V

Product Details

Rated voltage
12/24V
Supported Printers
VORON 0
VORON 2.4
Voron Switchwire
Country of origin
China
Set
Yes
5904209404155
2 Items
5904209404155

Reviews (0)

No reviews
Comments (0)
No customer reviews for the moment.
