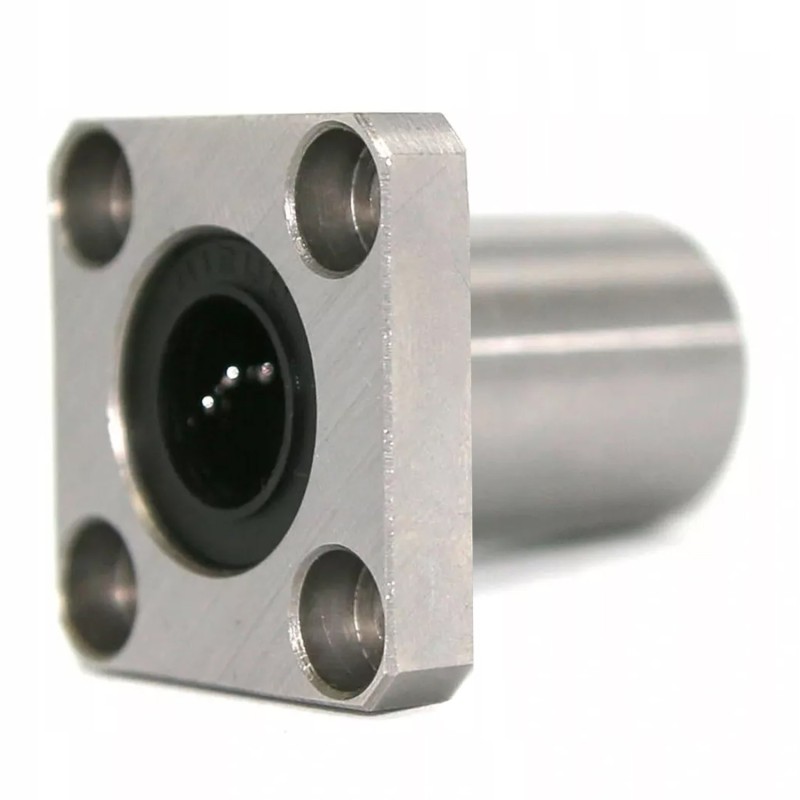

Linear bearing LMK12UU
Linear bearing LMK12UU
Linear bearing LMK12UU
Linear bearing LMK12UU

Linear bearing LMK12UU

  • Durable
  • It improves the stiffness of the entire construction
  • Wide range of applications
5901414650582 5901414650582

Description

Linear bearing LMK12UU - With a square flange fi 12 mm. LMK linear bearings (with a flange) - they can be mounted directly in the moving part of the machine, which significantly reduces the overall dimensions and improves the rigidity of the entire system.

The available bearings fit perfectly as a heating table bearing.

This type of linear bearing in addition to being used in 3D printers is widely used in electronic machinery, power tools, sports equipment, packaging machinery, food machinery, printing machinery, woodworking machinery, textile machinery, light industry machinery, mining machinery, engraving machinery and automation equipment , CNC equipment, etc.

Technical specification:

  • Maximum travel speed: 3-5 m / s
  • Working temperature range: -20 * C to + 80 * C
  • Coefficient of friction: 0.001 to 0.005
  • Tolerance of assembly holes: H7

Dimensions:

  • Outer diameter: 21 mm
  • Inner diameter: 12 mm
  • Bearing length: 24 mm
  • Bore width: 5.5 mm
  • Hole spacing: 23 mm
  • Flange thickness: 6 mm
  • Flange length: 32 mm

Product Details

Inner diameter / shaft diameter
5,5 mm
Material
Steel
Inner diameter
12 mm
Outer diameter
21 mm
Dynamic load
790 N
Static load
520 N
Bearing type
Linear
Mounting holes spacing
23 mm
Bearing length
30 mm
Country of origin
China
5901414650582 5901414650582
