Mounting table 120x50 cm

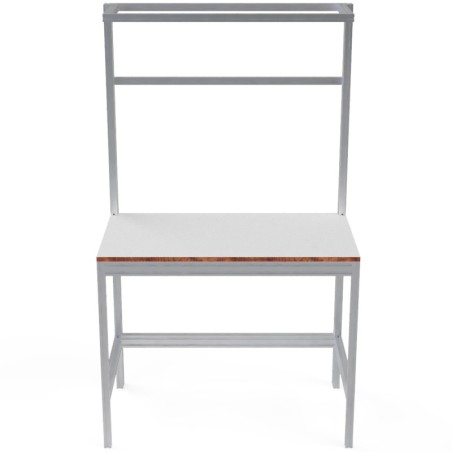

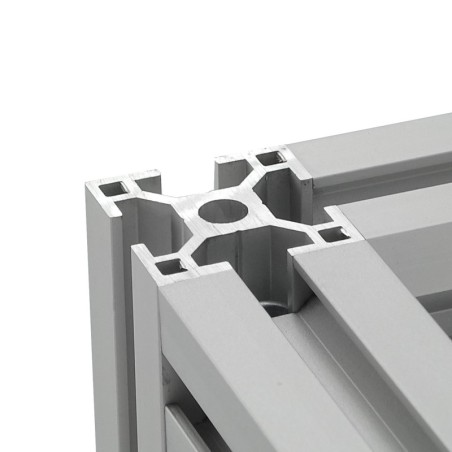

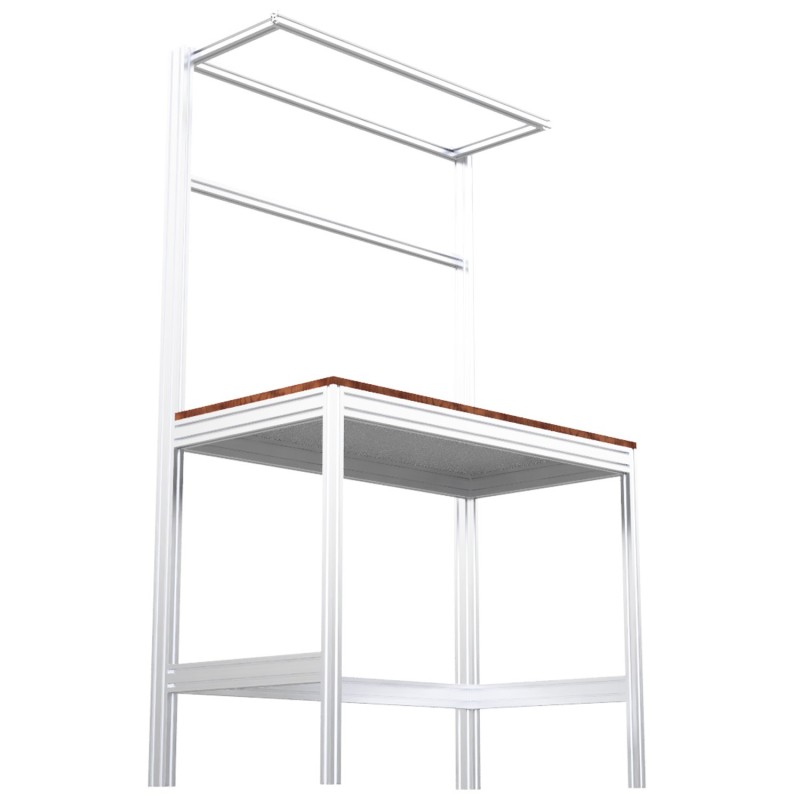

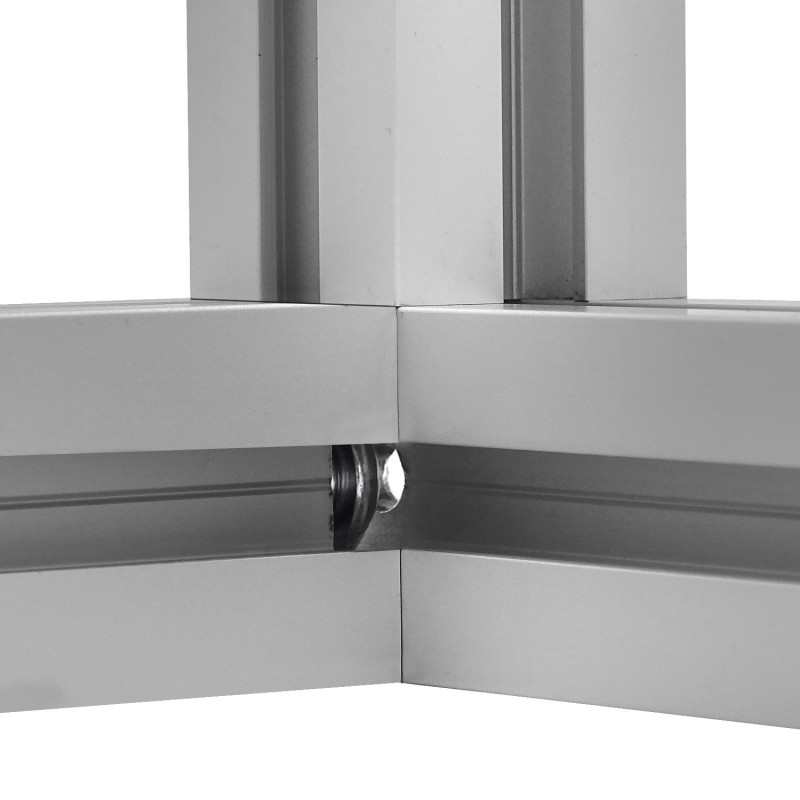

The assembly tables in our offer are made of 60x30 profiles with an 8mm groove on 4 sides. We use the Blind-joint system to join them together and additional connectors and angles to reinforce the rigidity. In addition to the tabletop element, they also have an additional rear modular wall construction and a light holder above the tabletop. This wall allows the installation of various appliances, shelves and other components.
You can choose to purchase the tables ready to assemble or in assembled form with an optional selectable top of MDF, laminated board or waterproof plywood, feet or castors.
Available assembly table dimensions for a basic height under the top of 80cm and a total height with wall of 190cm (without feet and castors):
- 100x50cm
- 120x50cm
- 150x50cm
It is possible to order any size of assembly table and additional elements according to the customer's needs. We are able to design and manufacture constructions according to customer's needs.
Table parts:
Profiles 3030 silver:
- 2x 800mm
- 3x 1140mm
- 2x 300mm
Profiles 3060 Silver:
- 3x 1140mm
- 5x 490mm
- 2x 800mm
- 2x 900mm
Bolts and nuts:
- 40x M8x16mm
- 26x M6x8mm
- 26x Hammer nut m6 slot 8mm
Angles:
- 10x 90° angle connector reinforced on one side - 60x60x30mm - silver
- 6x 90° angle connector - 30x30x26mm - silver
