Flanged bearing F695-RS 5x15x4mm
Flanged bearing F695-2RS 5x15x4mm
Flanged bearing F695-RS 5x15x4mm
Flanged bearing F695-2RS 5x15x4mm

Flanged bearing F695-RS 5x15x4mm

  • Self-lubricating
  • Steel structure
  • Durable
Last items in stock
zł4.90
Tax included

Description

Flanged bearing F695-RS 5x15x4mm

The F695-RS flange bearing is a flanged ball bearing. Used in individual projects related to 3D printing and more. The bearing may be axially fixed, e.g. in holes. The flange is an extension of the bearing outer ring, designed to facilitate mounting and positioning of the bearing.

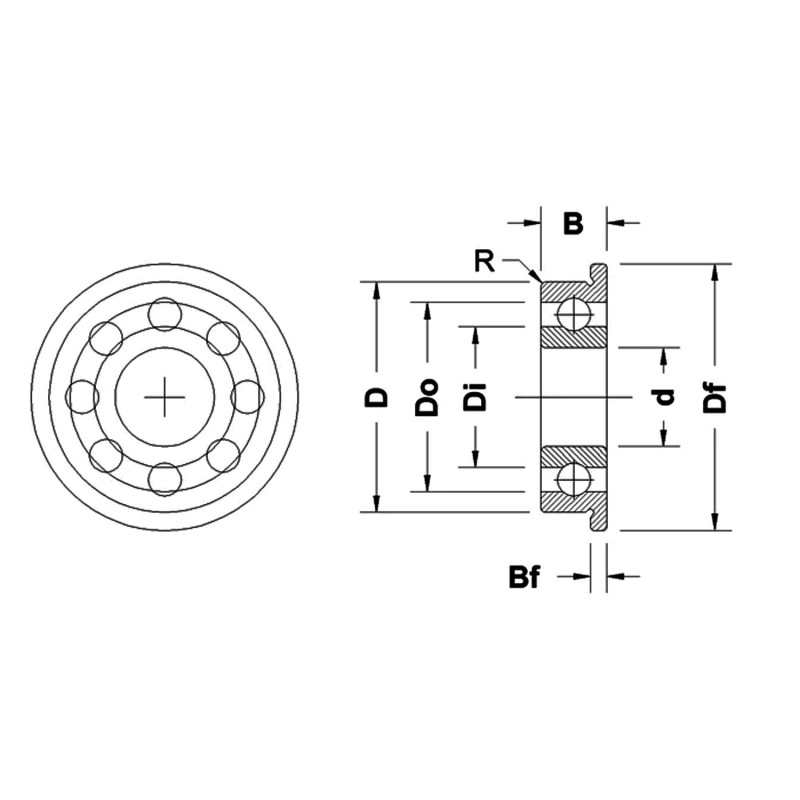

Technical specification:

  • type: deep groove ball bearing
  • dimensions: 8x16x5mm
  • lubrication: lubricated (grease),
  • closures: 1 sealed
  • inner diameter / hole - 5 mm
  • outer diameter with flange - 15 mm
  • flange diameter - 2 mm
  • diameter without flange - 13 mm
  • width - 4 mm

Product Details

Colour
Silver
Material
Steel
Supported Printers
VORON2.1
VORON 2.4
Voron Switchwire
Inner diameter
5 mm
Outer diameter
15 mm
Width
4 mm
Country of origin
China
5901414655754
1 Item
5901414655754
